To create a new analysis file, choose File | New | Analysis File from the menu. Select the folder for the new file and enter the file name. Press Finish to create and open an empty analysis file.

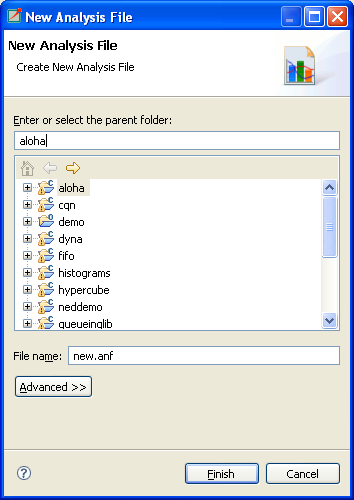

Figure 10.1. New Analysis File dialog

There is a quick way to create an analysis file for a result file. Just double-click on the result file in the Project Explorer View to open the New Analysis File dialog. The folder and file name is prefilled according to the location and name of the result file. Press Finish to create a new analysis file containing the vector and scalar files whose names correspond to the result file. If the name of the result file contains a numeric suffix (e.g. aloha-10.vec), then all files with the same prefix will be added to the analysis file (i.e. aloha-*.vec and aloha-*.sca).
