cAbstractHistogram Class Referenceabstract

#include <cabstracthistogram.h>

Description

Interface and base class for histogram-like density estimation classes.

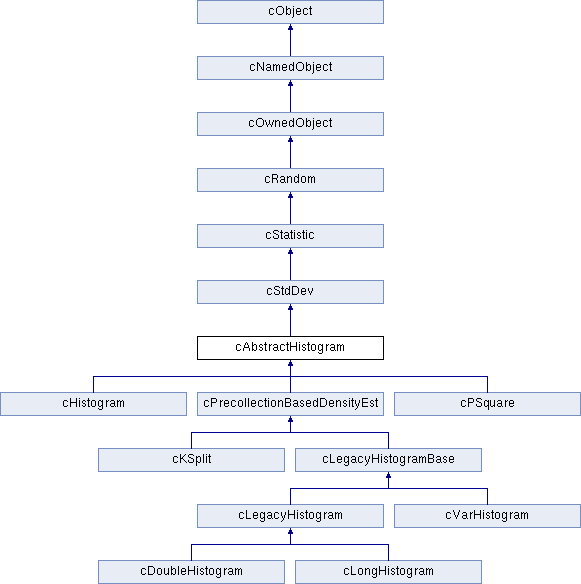

Inheritance diagram for cAbstractHistogram:
cStdDev cStatistic cRandom cOwnedObject cNamedObject cObject cHistogram cPrecollectionBasedDensityEst cPSquare cKSplit cLegacyHistogramBase cLegacyHistogram cVarHistogram cDoubleHistogram cLongHistogram

Classes

struct  Bin
 Information about a histogram bin. This struct is not used internally by the histogram classes, only to return information to the user. More...


Public Member Functions

Constructors, destructor, assignment.
 cAbstractHistogram (const cAbstractHistogram &other)

 cAbstractHistogram (const char *name=nullptr, bool weighted=false)

virtual ~cAbstractHistogram ()

cAbstractHistogram & operator= (const cAbstractHistogram &res)

Accessing histogram bins.
virtual bool binsAlreadySetUp () const =0

virtual void setUpBins ()=0

virtual int getNumBins () const =0

virtual double getBinEdge (int k) const =0

virtual double getBinValue (int k) const =0

virtual double getBinPDF (int k) const

virtual int64_t getNumUnderflows () const =0

virtual int64_t getNumOverflows () const =0

virtual double getUnderflowSumWeights () const =0

virtual double getOverflowSumWeights () const =0

virtual Bin getBinInfo (int k) const

Density and cumulated density approximation functions, random number generation.
virtual double getPDF (double x) const

virtual double getCDF (double x) const

virtual double draw () const override

Methods deprecated due to renaming.
virtual _OPPDEPRECATED bool isTransformed () const final

virtual _OPPDEPRECATED void transform () final

virtual _OPPDEPRECATED int getNumCells () const final

virtual _OPPDEPRECATED double getBasepoint (int k) const final

virtual _OPPDEPRECATED double getCellValue (int k) const final

virtual _OPPDEPRECATED double getCellPDF (int k) const final

virtual _OPPDEPRECATED int64_t getUnderflowCell () const final

virtual _OPPDEPRECATED int64_t getOverflowCell () const final

virtual _OPPDEPRECATED Bin getCellInfo (int k) const final

- Public Member Functions inherited from cStdDev
 cStdDev (const cStdDev &r)

 cStdDev (const char *name=nullptr, bool weighted=false)

virtual ~cStdDev ()

cStdDev & operator= (const cStdDev &res)

virtual cStdDev * dup () const override

virtual std::string str () const override

virtual void parsimPack (cCommBuffer *buffer) const override

virtual void parsimUnpack (cCommBuffer *buffer) override

virtual bool isWeighted () const override

virtual void collect (double value) override

virtual void collectWeighted (double value, double weight) override

virtual void merge (const cStatistic *other) override

virtual int64_t getCount () const override

virtual double getSum () const override

virtual double getSqrSum () const override

virtual double getMin () const override

virtual double getMax () const override

virtual double getMean () const override

virtual double getStddev () const override

virtual double getVariance () const override

virtual double getSumWeights () const override

virtual double getWeightedSum () const override

virtual double getSqrSumWeights () const override

virtual double getWeightedSqrSum () const override

virtual void clear () override

virtual void saveToFile (FILE *) const override

virtual void loadFromFile (FILE *) override

- Public Member Functions inherited from cStatistic
 cStatistic (const cStatistic &r)

 cStatistic (const char *name=nullptr)

virtual ~cStatistic ()

cStatistic & operator= (const cStatistic &res)

virtual void collect (SimTime value)

virtual void collectWeighted (SimTime value, double weight)

virtual void collectWeighted (double value, SimTime weight)

virtual void collectWeighted (SimTime value, SimTime weight)

virtual void record ()

virtual void recordWithUnit (const char *unit)

virtual void recordAs (const char *name, const char *unit=nullptr)

virtual _OPPDEPRECATED double getWeights () const final

virtual _OPPDEPRECATED void collect2 (double value, double weight) final

virtual _OPPDEPRECATED void collect2 (SimTime value, double weight) final

virtual _OPPDEPRECATED void collect2 (double value, SimTime weight) final

virtual _OPPDEPRECATED void collect2 (SimTime value, SimTime weight) final

virtual _OPPDEPRECATED double random () const final

virtual _OPPDEPRECATED void clearResult () final

- Public Member Functions inherited from cRandom
 cRandom (cRNG *rng)

 cRandom (const char *name=nullptr, cRNG *rng=nullptr)

virtual ~cRandom ()

virtual void setRNG (cRNG *rng)

cRNG * getRNG () const

- Public Member Functions inherited from cOwnedObject
 cOwnedObject ()

 cOwnedObject (const char *name, bool namepooling=true)

 cOwnedObject (const cOwnedObject &obj)

virtual ~cOwnedObject ()

cOwnedObject & operator= (const cOwnedObject &o)

virtual cObject * getOwner () const override

virtual bool isOwnedObject () const override

virtual bool isSoftOwner () const

- Public Member Functions inherited from cNamedObject
 cNamedObject ()

 cNamedObject (const char *name, bool namepooling=true)

 cNamedObject (const cNamedObject &obj)

virtual ~cNamedObject ()

cNamedObject & operator= (const cNamedObject &o)

virtual void setName (const char *s)

virtual const char * getName () const override

virtual void setNamePooling (bool b)

virtual bool getNamePooling ()

- Public Member Functions inherited from cObject
 cObject ()

 cObject (const cObject &other)

virtual ~cObject ()

virtual const char * getClassName () const

bool isName (const char *s) const

virtual const char * getFullName () const

virtual std::string getFullPath () const

const cObject * getThisPtr () const

virtual _OPPDEPRECATED std::string info () const

virtual _OPPDEPRECATED std::string detailedInfo () const

virtual void forEachChild (cVisitor *v)

cObject * findObject (const char *name, bool deep=true)

void copyNotSupported () const


Additional Inherited Members

- Static Public Member Functions inherited from cOwnedObject
static long getTotalObjectCount ()

static long getLiveObjectCount ()

static void resetObjectCounters ()

static cDefaultList * getDefaultOwner ()

- Protected Member Functions inherited from cObject
virtual void take (cOwnedObject *obj)

virtual void drop (cOwnedObject *obj)

void dropAndDelete (cOwnedObject *obj)


Constructor & Destructor Documentation

cAbstractHistogram ( const cAbstractHistogram &  other)
inline

Copy constructor.

cAbstractHistogram ( const char *  name = nullptr,
bool  weighted = false
)
inlineexplicit

Constructor.

virtual ~cAbstractHistogram ( )
inlinevirtual

Destructor.

Member Function Documentation

cAbstractHistogram& operator= ( const cAbstractHistogram &  res)
inline

Assignment operator. The name member is not copied; see cNamedObject's operator=() for more details.

References cStdDev::operator=().

virtual bool binsAlreadySetUp ( ) const
pure virtual

Returns true if histogram is already available. See setUpBins().

Implemented in cPrecollectionBasedDensityEst, cHistogram, and cPSquare.

virtual void setUpBins ( )
pure virtual

Sets up histogram bins, possibly based on data collected during a precollection phase.

Implemented in cKSplit, cHistogram, cVarHistogram, cPSquare, and cLegacyHistogramBase.

virtual int getNumBins ( ) const
pure virtual

Returns the number of histogram bins.

Implemented in cHistogram, cKSplit, cPSquare, and cLegacyHistogramBase.

virtual double getBinEdge ( int  k) const
pure virtual

Returns the kth histogram bin edge. Legal values for k are 0 through getNumBins(), that is, there's one more edge than the number of bins. getBinEdge(0) returns the lower bound of the first bin, and getBinEdge(getNumBins()) returns the upper bound of the last bin. The lower bound is inclusive, the upper bound is exclusive.

Implemented in cHistogram, cLegacyHistogram, cKSplit, cVarHistogram, and cPSquare.

virtual double getBinValue ( int  k) const
pure virtual

Returns the total weight of the observations in the k'th bin of the histogram. (In the unweighted case, every observation is regarded as having the weight 1.0.)

Implemented in cHistogram, cLegacyHistogram, cKSplit, cVarHistogram, and cPSquare.

virtual double getBinPDF ( int  k) const
virtual

Returns the estimated value of the Probability Density Function within bin k. This method simply divides the number of observations in bin k with the bin size and the number of total observations collected.

virtual int64_t getNumUnderflows ( ) const
pure virtual

Returns number of observations that were below the histogram range, independent of their weights.

Implemented in cHistogram, cPrecollectionBasedDensityEst, and cPSquare.

virtual int64_t getNumOverflows ( ) const
pure virtual

Returns number of observations that were above the histogram range, independent of their weights.

Implemented in cHistogram, cPrecollectionBasedDensityEst, and cPSquare.

virtual double getUnderflowSumWeights ( ) const
pure virtual

Returns the total weight of the observations that were below the histogram range.

Implemented in cHistogram, cPrecollectionBasedDensityEst, and cPSquare.

virtual double getOverflowSumWeights ( ) const
pure virtual

Returns the total weight of the observations that were above the histogram range.

Implemented in cHistogram, cPrecollectionBasedDensityEst, and cPSquare.

virtual Bin getBinInfo ( int  k) const
virtual

Combines the functionality of getBinEdge(), getBinValue() and getBinPDF() into a single call.

virtual double getPDF ( double  x) const
virtual

Returns the estimated value of the Probability Density Function at a given x.

Reimplemented in cLegacyHistogram, and cVarHistogram.

virtual double getCDF ( double  x) const
virtual

Returns the estimated value of the Cumulative Density Function at a given x.

Reimplemented in cLegacyHistogram, and cVarHistogram.

virtual double draw ( ) const
overridevirtual

Returns a random number from the distribution represented by the histogram.

Reimplemented from cStdDev.

Reimplemented in cLegacyHistogram, cPSquare, and cVarHistogram.

virtual _OPPDEPRECATED bool isTransformed ( ) const
inlinefinalvirtual

Deprecated, use binsAlreadySetUp() instead.

virtual _OPPDEPRECATED void transform ( )
inlinefinalvirtual

Deprecated, use setUpBins() instead.

virtual _OPPDEPRECATED int getNumCells ( ) const
inlinefinalvirtual

Deprecated, use getNumBins() instead.

virtual _OPPDEPRECATED double getBasepoint ( int  k) const
inlinefinalvirtual

Deprecated, use getBinEdge() instead.

virtual _OPPDEPRECATED double getCellValue ( int  k) const
inlinefinalvirtual

Deprecated, use getBinValue() instead.

virtual _OPPDEPRECATED double getCellPDF ( int  k) const
inlinefinalvirtual

Deprecated, use getBinPDF() instead.

virtual _OPPDEPRECATED int64_t getUnderflowCell ( ) const
inlinefinalvirtual

Deprecated, use getNumUnderflows() instead.

virtual _OPPDEPRECATED int64_t getOverflowCell ( ) const
inlinefinalvirtual

Deprecated, use getNumUnderflows() instead.

virtual _OPPDEPRECATED Bin getCellInfo ( int  k) const
inlinefinalvirtual

Deprecated, use getBinInfo() instead.

The documentation for this class was generated from the following file:
