#include <ccanvas.h>

Description

A figure that displays an image that can be manipulated programmatically.

A pixmap figure may be used to display e.g. a heat map. Support for scaling and various interpolation modes are useful here.

See also: cFigure::Pixmap

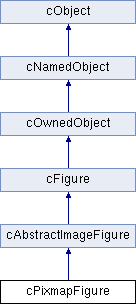

Inheritance diagram for cPixmapFigure:

Public Member Functions
Constructors, destructor, assignment.
	cPixmapFigure (const char *name=nullptr)

	cPixmapFigure (const cPixmapFigure &other)

virtual	~cPixmapFigure ()

cPixmapFigure &	operator= (const cPixmapFigure &other)

Redefined cObject and cFigure member functions.
virtual cPixmapFigure *	dup () const override

virtual std::string	str () const override

virtual void	parse (cProperty *property) override

virtual const char *	getRendererClassName () const override

Pixmap manipulation
virtual const Pixmap &	getPixmap () const

virtual void	setPixmap (const Pixmap &pixmap)

virtual int	getPixmapHeight () const

virtual int	getPixmapWidth () const

virtual void	setPixmapSize (int width, int height, const RGBA &fill)

virtual void	setPixmapSize (int width, int height, const Color &color, double opacity)

virtual void	fillPixmap (const RGBA &fill)

virtual void	fillPixmap (const Color &color, double opacity)

virtual const RGBA	getPixel (int x, int y) const

virtual void	setPixel (int x, int y, const RGBA &argb)

virtual void	setPixel (int x, int y, const Color &color, double opacity=1.0)

virtual const Color	getPixelColor (int x, int y) const

virtual void	setPixelColor (int x, int y, const Color &color)

virtual double	getPixelOpacity (int x, int y) const

virtual void	setPixelOpacity (int x, int y, double opacity)

Public Member Functions inherited from cAbstractImageFigure
	cAbstractImageFigure (const char *name=nullptr)

	cAbstractImageFigure (const cAbstractImageFigure &other)

cAbstractImageFigure &	operator= (const cAbstractImageFigure &other)

virtual void	moveLocal (double dx, double dy) override

virtual const Point &	getPosition () const

virtual void	setPosition (const Point &position)

virtual Anchor	getAnchor () const

virtual void	setAnchor (Anchor anchor)

virtual double	getWidth () const

virtual void	setWidth (double width)

virtual double	getHeight () const

virtual void	setHeight (double height)

virtual void	setSize (double width, double height)

virtual Rectangle	getBounds () const

virtual Interpolation	getInterpolation () const

virtual void	setInterpolation (Interpolation interpolation)

virtual double	getOpacity () const

virtual void	setOpacity (double opacity)

virtual const Color &	getTintColor () const

virtual void	setTintColor (const Color &tintColor)

virtual double	getTintAmount () const

virtual void	setTintAmount (double tintAmount)

Public Member Functions inherited from cFigure
	cFigure (const char *name=nullptr)

	cFigure (const cFigure &other)

virtual	~cFigure ()

cFigure &	operator= (const cFigure &other)

virtual void	forEachChild (cVisitor *v) override

int	getId () const

virtual bool	isVisible () const

virtual void	setVisible (bool visible)

virtual const Transform &	getTransform () const

virtual void	setTransform (const Transform &transform)

virtual void	resetTransform ()

virtual double	getZIndex () const

virtual void	setZIndex (double zIndex)

virtual double	getEffectiveZIndex () const

virtual const char *	getTooltip () const

virtual void	setTooltip (const char *tooltip)

virtual cObject *	getAssociatedObject () const

virtual void	setAssociatedObject (cObject *obj)

virtual const char *	getTags () const

virtual void	setTags (const char *tags)

virtual cFigure *	getParentFigure () const

virtual cCanvas *	getCanvas () const

virtual int	getNumFigures () const

virtual cFigure *	getFigure (int pos) const

virtual cFigure *	getFigure (const char *name) const

virtual int	findFigure (const char *name) const

virtual int	findFigure (const cFigure *figure) const

virtual bool	containsFigures () const

virtual cFigure *	findFigureRecursively (const char *name) const

virtual cFigure *	getFigureByPath (const char *path) const

virtual void	addFigure (cFigure *figure)

virtual void	addFigure (cFigure *figure, int pos)

_OPPDEPRECATED void	addFigureAbove (cFigure figure, cFigure referenceFigure)

_OPPDEPRECATED void	addFigureBelow (cFigure figure, cFigure referenceFigure)

virtual cFigure *	removeFigure (cFigure *figure)

virtual cFigure *	removeFigure (int pos)

virtual cFigure *	removeFromParent ()

virtual bool	isAbove (const cFigure *figure) const

virtual bool	isBelow (const cFigure *figure) const

virtual void	insertAbove (cFigure *referenceFigure)

virtual void	insertBelow (cFigure *referenceFigure)

virtual void	insertAfter (const cFigure *referenceFigure)

virtual void	insertBefore (const cFigure *referenceFigure)

virtual void	raiseAbove (cFigure *figure)

virtual void	lowerBelow (cFigure *figure)

virtual void	raiseToTop ()

virtual void	lowerToBottom ()

virtual cFigure *	dupTree () const

virtual void	translate (double dx, double dy)

virtual void	scale (double s)

virtual void	scale (double sx, double sy)

virtual void	scale (double sx, double sy, double cx, double cy)

virtual void	scale (double sx, double sy, const Point &c)

virtual void	rotate (double phi)

virtual void	rotate (double phi, double cx, double cy)

virtual void	rotate (double phi, const Point &c)

virtual void	skewx (double coeff)

virtual void	skewy (double coeff)

virtual void	skewx (double coeff, double cy)

virtual void	skewy (double coeff, double cx)

virtual void	move (double dx, double dy)

virtual void	refreshDisplay ()

Public Member Functions inherited from cOwnedObject
	cOwnedObject ()

	cOwnedObject (const char *name, bool namepooling=true)

	cOwnedObject (const cOwnedObject &obj)

virtual	~cOwnedObject ()

cOwnedObject &	operator= (const cOwnedObject &o)

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual cObject *	getOwner () const override

virtual bool	isOwnedObject () const override

virtual bool	isSoftOwner () const

Public Member Functions inherited from cNamedObject
	cNamedObject ()

	cNamedObject (const char *name, bool namepooling=true)

	cNamedObject (const cNamedObject &obj)

virtual	~cNamedObject ()

cNamedObject &	operator= (const cNamedObject &o)

virtual void	setName (const char *s)

virtual const char *	getName () const override

virtual void	setNamePooling (bool b)

virtual bool	getNamePooling ()

Public Member Functions inherited from cObject
	cObject ()

	cObject (const cObject &other)

virtual	~cObject ()

virtual const char *	getClassName () const

bool	isName (const char *s) const

virtual const char *	getFullName () const

virtual std::string	getFullPath () const

const cObject *	getThisPtr () const

virtual _OPPDEPRECATED std::string	info () const

virtual _OPPDEPRECATED std::string	detailedInfo () const

cObject *	findObject (const char *name, bool deep=true)

void	copyNotSupported () const

Protected Member Functions
virtual const char **	getAllowedPropertyKeys () const override

Protected Member Functions inherited from cObject
virtual void	take (cOwnedObject *obj)

virtual void	drop (cOwnedObject *obj)

void	dropAndDelete (cOwnedObject *obj)

Additional Inherited Members
Public Types inherited from cFigure
Static Public Member Functions inherited from cOwnedObject
static long	getTotalObjectCount ()

static long	getLiveObjectCount ()

static void	resetObjectCounters ()

static cDefaultList *	getDefaultOwner ()

Static Public Attributes inherited from cFigure
static const Color	BLACK

static const Color	WHITE

static const Color	GREY

static const Color	RED

static const Color	GREEN

static const Color	BLUE

static const Color	YELLOW

static const Color	CYAN

static const Color	MAGENTA

static const int	NUM_GOOD_DARK_COLORS

static const int	NUM_GOOD_LIGHT_COLORS

static const Color	GOOD_DARK_COLORS [14]

static const Color	GOOD_LIGHT_COLORS [10]

Member Function Documentation

virtual const char** getAllowedPropertyKeys ( ) const

overrideprotectedvirtual

Returns the list of allowed keys in @figure properties with this figure type, in a nullptr-terminated array of const char* elements. This method is invoked e.g. from parse(), in order to be able to issue error messages for invalid keys in the property. Note that property keys starting with "x-" are already allowed by default. Custom figure classes usually need to override this method together with parse(); see the source code of the library classes for example implementations.

Reimplemented from cAbstractImageFigure.

virtual cPixmapFigure* dup ( ) const

inlineoverridevirtual

Clones the figure, ignoring its child figures. (The copy will have no children.) To clone a figure together with its figure subtree, use dupTree().

Reimplemented from cAbstractImageFigure.

virtual std::string str ( ) const

overridevirtual

Returns a one-line string with the most characteristic data of the figure.

Reimplemented from cFigure.

virtual void parse ( cProperty * property )

overridevirtual

This method is invoked by the simulation library to initialize the figure from a @figure NED property. Custom figure classes usually need to override this method (and call the super class' similar method in it).

Note: When overriding parse(), it is usually also necessary to override getAllowedPropertyKeys(), in order to allow new keys in the @figure property.

Reimplemented from cAbstractImageFigure.

virtual const char* getRendererClassName ( ) const

inlineoverridevirtual

Returns the name of the class responsible for rendering this figure. Renderer classes are specific to, and are usually implemented as part of, the graphical user interface library (Tkenv or Qtenv).

Implements cFigure.

virtual const Pixmap& getPixmap ( ) const

inlinevirtual

Returns the displayed pixmap. It must not be modified directly (e.g. after casting away the const modifier), because the GUI would not be notified about the change. Use the pixel manipulation methods of the figure class, or make a copy of the pixmap, update it, and then set it back on the figure using setPixmap().

virtual void setPixmap ( const Pixmap & pixmap )

virtual

Sets the pixmap to be displayed. Note that this involves copying the pixmap data.

virtual int getPixmapHeight ( ) const

inlinevirtual
