#include <cdataratechannel.h>

Description

Channel that models delay, bit error rate and data rate.

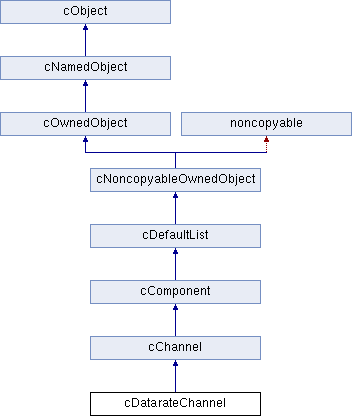

Inheritance diagram for cDatarateChannel:

Public Member Functions
Redefined cObject member functions.
virtual std::string	str () const override

Setting and getting channel parameters.
virtual bool	isTransmissionChannel () const override

virtual void	setDelay (double d)

virtual void	setDatarate (double d)

virtual void	setBitErrorRate (double d)

virtual void	setPacketErrorRate (double d)

virtual void	setDisabled (bool d)

virtual simtime_t	getDelay () const

virtual double	getDatarate () const

virtual double	getBitErrorRate () const

virtual double	getPacketErrorRate () const

virtual bool	isDisabled () const

Transmission state.
virtual double	getNominalDatarate () const override

virtual simtime_t	calculateDuration (cMessage *msg) const override

virtual simtime_t	getTransmissionFinishTime () const override

virtual bool	isBusy () const override

virtual void	forceTransmissionFinishTime (simtime_t t) override

Implementation methods
virtual void	initialize () override

virtual void	processMessage (cMessage *msg, simtime_t t, result_t &result) override

Public Member Functions inherited from cChannel
virtual void	finalizeParameters () override

	cChannel (const char *name=nullptr)

virtual	~cChannel ()

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual void	callInitialize () override

virtual bool	callInitialize (int stage) override

virtual void	callFinish () override

virtual ComponentKind	getComponentKind () const override

virtual cModule *	getParentModule () const override

cChannelType *	getChannelType () const

virtual cProperties *	getProperties () const override

virtual cGate *	getSourceGate () const

Public Member Functions inherited from cComponent
	cComponent (const char *name=nullptr)

virtual	~cComponent ()

virtual void	forEachChild (cVisitor *v) override

const cComponent *	getThisPtr () const

virtual cComponentType *	getComponentType () const

cSimulation *	getSimulation () const

int	getId () const

virtual const char *	getNedTypeName () const

bool	isModule () const

bool	isChannel () const

virtual cModule *	getSystemModule () const

virtual int	getNumParams () const

virtual cPar &	par (int k)

const cPar &	par (int k) const

virtual cPar &	par (const char *parname)

const cPar &	par (const char *parname) const

virtual int	findPar (const char *parname) const

bool	hasPar (const char *s) const

virtual cRNG *	getRNG (int k) const

virtual unsigned long	intrand (long r, int rng=0) const

virtual double	dblrand (int rng=0) const

virtual double	uniform (double a, double b, int rng=0) const

virtual SimTime	uniform (SimTime a, SimTime b, int rng=0) const

virtual double	exponential (double mean, int rng=0) const

virtual SimTime	exponential (SimTime mean, int rng=0) const

virtual double	normal (double mean, double stddev, int rng=0) const

virtual SimTime	normal (SimTime mean, SimTime stddev, int rng=0) const

virtual double	truncnormal (double mean, double stddev, int rng=0) const

virtual SimTime	truncnormal (SimTime mean, SimTime stddev, int rng=0) const

virtual double	gamma_d (double alpha, double theta, int rng=0) const

virtual double	beta (double alpha1, double alpha2, int rng=0) const

virtual double	erlang_k (unsigned int k, double mean, int rng=0) const

virtual double	chi_square (unsigned int k, int rng=0) const

virtual double	student_t (unsigned int i, int rng=0) const

virtual double	cauchy (double a, double b, int rng=0) const

virtual double	triang (double a, double b, double c, int rng=0) const

virtual double	lognormal (double m, double w, int rng=0) const

virtual double	weibull (double a, double b, int rng=0) const

virtual double	pareto_shifted (double a, double b, double c, int rng=0) const

virtual int	intuniform (int a, int b, int rng=0) const

virtual int	bernoulli (double p, int rng=0) const

virtual int	binomial (int n, double p, int rng=0) const

virtual int	geometric (double p, int rng=0) const

virtual int	negbinomial (int n, double p, int rng=0) const

virtual int	poisson (double lambda, int rng=0) const

virtual void	subscribe (simsignal_t signalID, cIListener *listener)

virtual void	subscribe (const char signalName, cIListener listener)

virtual void	unsubscribe (simsignal_t signalID, cIListener *listener)

virtual void	unsubscribe (const char signalName, cIListener listener)

virtual bool	isSubscribed (simsignal_t signalID, cIListener *listener) const

virtual bool	isSubscribed (const char signalName, cIListener listener) const

virtual std::vector< simsignal_t >	getLocalListenedSignals () const

virtual std::vector< cIListener * >	getLocalSignalListeners (simsignal_t signalID) const

virtual bool	hasGUI () const

virtual cDisplayString &	getDisplayString () const

virtual void	setDisplayString (const char *dispstr)

virtual void	bubble (const char *text) const

virtual std::string	resolveResourcePath (const char *fileName) const

virtual void	recordScalar (const char name, double value, const char unit=nullptr)

virtual void	recordScalar (const char name, SimTime value, const char unit=nullptr)

virtual void	recordStatistic (cStatistic stats, const char unit=nullptr)

virtual void	recordStatistic (const char name, cStatistic stats, const char *unit=nullptr)

virtual void	emit (simsignal_t signalID, bool b, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, long l, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, unsigned long l, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, double d, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, const SimTime &t, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, const char s, cObject details=nullptr)

virtual void	emit (simsignal_t signalID, cObject obj, cObject details=nullptr)

virtual void	emit (simsignal_t signalID, const cObject obj, cObject details=nullptr)

virtual void	emit (simsignal_t signalID, char c, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, unsigned char c, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, short i, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, unsigned short i, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, int i, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, unsigned int i, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, float f, cObject *details=nullptr)

virtual void	emit (simsignal_t signalID, long double d, cObject *details=nullptr)

bool	mayHaveListeners (simsignal_t signalID) const

bool	hasListeners (simsignal_t signalID) const

Public Member Functions inherited from cDefaultList
	cDefaultList (const char *name=nullptr)

virtual	~cDefaultList ()

virtual bool	isSoftOwner () const override

bool	getPerformFinalGC () const

virtual void	setPerformFinalGC (bool b)

int	defaultListSize () const

cOwnedObject *	defaultListGet (int k)

bool	defaultListContains (cOwnedObject *obj) const

Public Member Functions inherited from cNoncopyableOwnedObject
	cNoncopyableOwnedObject (const char *name=nullptr, bool namepooling=true)

virtual cNoncopyableOwnedObject *	dup () const override

Public Member Functions inherited from cOwnedObject
	cOwnedObject ()

	cOwnedObject (const char *name, bool namepooling=true)

	cOwnedObject (const cOwnedObject &obj)

virtual	~cOwnedObject ()

cOwnedObject &	operator= (const cOwnedObject &o)

virtual cObject *	getOwner () const override

virtual bool	isOwnedObject () const override

Public Member Functions inherited from cNamedObject
	cNamedObject ()

	cNamedObject (const char *name, bool namepooling=true)

	cNamedObject (const cNamedObject &obj)

virtual	~cNamedObject ()

cNamedObject &	operator= (const cNamedObject &o)

virtual void	setName (const char *s)

virtual const char *	getName () const override

virtual void	setNamePooling (bool b)

virtual bool	getNamePooling ()

Public Member Functions inherited from cObject
	cObject ()

	cObject (const cObject &other)

virtual	~cObject ()

virtual const char *	getClassName () const

bool	isName (const char *s) const

virtual const char *	getFullName () const

virtual std::string	getFullPath () const

const cObject *	getThisPtr () const

virtual _OPPDEPRECATED std::string	info () const

virtual _OPPDEPRECATED std::string	detailedInfo () const

cObject *	findObject (const char *name, bool deep=true)

void	copyNotSupported () const

Protected Member Functions
virtual void	handleParameterChange (const char *parname) override

virtual void	finish () override

Protected Member Functions inherited from cComponent
virtual void	initialize (int stage)

virtual int	numInitStages () const

virtual void	refreshDisplay () const

Protected Member Functions inherited from cDefaultList
virtual void	take (cOwnedObject *obj) override

virtual void	drop (cOwnedObject *obj) override

Protected Member Functions inherited from cObject
void	dropAndDelete (cOwnedObject *obj)

Constructors, destructor
	cDatarateChannel (const char *name=nullptr)

virtual	~cDatarateChannel ()

static cDatarateChannel *	create (const char *name)

Additional Inherited Members
Static Public Member Functions inherited from cComponent
static simsignal_t	registerSignal (const char *name)

static const char *	getSignalName (simsignal_t signalID)

Static Public Member Functions inherited from cOwnedObject
static long	getTotalObjectCount ()

static long	getLiveObjectCount ()

static void	resetObjectCounters ()

static cDefaultList *	getDefaultOwner ()

Constructor & Destructor Documentation

cDatarateChannel ( const char * name = nullptr )

explicit

Constructor. This is only for internal purposes, and should not be used when creating channels dynamically; use the create() factory method instead.

virtual ~cDatarateChannel ( )

virtual

Destructor.

Member Function Documentation

virtual void handleParameterChange ( const char * parname )

overrideprotectedvirtual

This method is called by the simulation kernel to notify the module or channel that the value of an existing parameter has changed. Redefining this method allows simple modules and channels to be react on parameter changes, for example by re-reading the value. This default implementation does nothing.

The parameter name is nullptr if more than one parameter has changed.

To make it easier to write predictable components, the function is NOT called on uninitialized components (i.e. when initialized() returns false). For each component, the function is called (with nullptr as a parname) after the last stage of the initialization, so that the module gets a chance to update its cached parameters.

Also, one must be extremely careful when changing parameters from inside handleParameterChange(), to avoid creating an infinite notification loop.

Reimplemented from cComponent.

virtual void finish ( )

overrideprotectedvirtual

Finish hook. finish() is called after end of simulation if it terminated without error. This default implementation does nothing.

Reimplemented from cComponent.

static cDatarateChannel* create ( const char * name )

static

Utility function for dynamic channel creation. Equivalent to cChannelType::getDatarateChannelType()->create(name).

virtual std::string str ( ) const

overridevirtual

Produces a one-line description of the object's contents. See cObject for more details.

Reimplemented from cChannel.

virtual bool isTransmissionChannel ( ) const

inlineoverridevirtual

Returns true.

Implements cChannel.

virtual void setDelay ( double d )

virtual

Sets the propagation delay of the channel, in seconds.

virtual void setDatarate ( double d )

virtual

Sets the data rate of the channel, in bit/second.

See also: isBusy(), getTransmissionFinishTime()

virtual void setBitErrorRate ( double d )

virtual

Sets the bit error rate (BER) of the channel.

See also: cPacket::hasBitError()

virtual void setPacketErrorRate ( double d )

virtual

Sets the packet error rate (PER) of the channel.

See also: cPacket::hasBitError()

virtual void setDisabled ( bool d )

virtual

Disables or enables the channel.

virtual simtime_t getDelay ( ) const

inlinevirtual

Returns the propagation delay of the channel, in seconds. This method is equivalent to reading the "delay" parameter, via par("delay").

virtual double getDatarate ( ) const

inlinevirtual

Returns the data rate of the channel, in bit/second. This method is equivalent to reading the "datarate" parameter, via par("datarate"). This value affects the transmission time of messages sent through the channel.

virtual double getBitErrorRate ( ) const

inlinevirtual

Returns the bit error rate (BER) of the channel. This method is equivalent to reading the "ber" parameter, via par("ber"). When a message sent through the channel suffers at least one bit error, its bit error flag will be set.

virtual double getPacketErrorRate ( ) const

inlinevirtual

Returns the packet error rate (PER) of the channel. This method is equivalent to reading the "per" parameter, via par("per"). When a message is sent through the channel, its bit error flag will be set with this probability.

virtual bool isDisabled ( ) const

inlinevirtual

Returns whether the channel is disabled. This method is equivalent to reading the "disabled" parameter, via par("disabled"). A disabled channel discards all messages sent on it.

virtual double getNominalDatarate ( ) const

inlineoverridevirtual

Same as getDatarate().

Implements cChannel.

virtual simtime_t calculateDuration ( cMessage * msg ) const

overridevirtual

Returns the message length in bits divided by the datarate.

Note that processMessage() does NOT call this method, so in order to change the duration computation algorithm via subclassing you need to redefine both this and processMessage().

Implements cChannel.

virtual simtime_t getTransmissionFinishTime ( ) const

inlineoverridevirtual

Returns the simulation time the sender gate will finish transmitting. If the gate is not currently transmitting, the result is undefined but less or equal the current simulation time.

The transmission duration of a message depends on the message length and the data rate assigned to the channel.

Implements cChannel.

virtual bool isBusy ( ) const

inlineoverridevirtual

Returns whether the sender gate is currently transmitting, ie. whether transmissionFinishTime() is greater than the current simulation time.

Reimplemented from cChannel.

References omnetpp::simTime().

virtual void forceTransmissionFinishTime ( simtime_t t )

overridevirtual

Forcibly overwrites the finish time of the current transmission in the channel (see getTransmissionFinishTime()). This method can be used for implementing transmission abortion; see declaration in base class (cChannel::forceTransmissionFinishTime()) for more information.

Implements cChannel.

virtual void initialize ( )

overridevirtual

Initialization.

Reimplemented from cComponent.

virtual void processMessage	(	cMessage *	msg,
		simtime_t	t,
		result_t &	result
	)

overridevirtual

Performs bit error rate, delay and transmission time modelling.

Implements cChannel.

The documentation for this class was generated from the following file:

cdataratechannel.h

Description

Public Member Functions

Protected Member Functions

Constructors, destructor

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
