cLegacyHistogramBase Class Reference
#include <clegacyhistogram.h>
Description
Base class for histogram classes. It adds a vector of counters to cPrecollectionBasedDensityEst.
DEPRECATED CLASS, do not use for new classes.

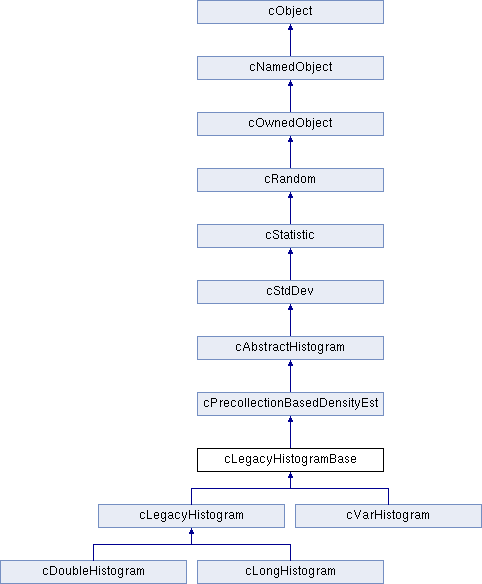

Inheritance diagram for cLegacyHistogramBase:
Public Member Functions | |
Constructors, destructor, assignment. | |
| cLegacyHistogramBase (const cLegacyHistogramBase &r) | |
| cLegacyHistogramBase (const char *name, int numcells, bool weighted=false) | |
| virtual | ~cLegacyHistogramBase () |
| cLegacyHistogramBase & | operator= (const cLegacyHistogramBase &res) |
Redefined cObject member functions. | |
| virtual void | parsimPack (cCommBuffer *buffer) const override |
| virtual void | parsimUnpack (cCommBuffer *buffer) override |
Redefined member functions from cStatistic and its subclasses. | |
| virtual void | clear () override |
| virtual void | setUpBins () override |
| virtual int | getNumBins () const override |
| virtual void | saveToFile (FILE *) const override |
| virtual void | loadFromFile (FILE *) override |
New member functions. | |
| virtual void | setNumCells (int numcells) |
 Public Member Functions inherited from cPrecollectionBasedDensityEst | |
| cPrecollectionBasedDensityEst (const cPrecollectionBasedDensityEst &other) | |
| cPrecollectionBasedDensityEst (const char *name=nullptr, bool weighted=false) | |
| virtual | ~cPrecollectionBasedDensityEst () |
| cPrecollectionBasedDensityEst & | operator= (const cPrecollectionBasedDensityEst &res) |
| virtual void | collect (double value) override |
| virtual void | collectWeighted (double value, double weight) override |
| virtual void | merge (const cStatistic *other) override |
| virtual void | setRange (double lower, double upper) |
| virtual void | setRangeAuto (int numPrecollect=100, double rangeExtensionFactor=2.0) |
| virtual void | setRangeAutoLower (double upper, int numPrecollect=100, double rangeExtensionFactor=2.0) |
| virtual void | setRangeAutoUpper (double lower, int numPrecollect=100, double rangeExtensionFactor=2.0) |
| virtual void | setNumPrecollectedValues (int numPrecollect) |
| virtual int | getNumPrecollectedValues () const |
| virtual double | getRangeExtensionFactor () const |
| virtual bool | binsAlreadySetUp () const override |
| virtual int64_t | getNumUnderflows () const override |
| virtual int64_t | getNumOverflows () const override |
| virtual double | getUnderflowSumWeights () const override |
| virtual double | getOverflowSumWeights () const override |
| Public Member Functions inherited from cAbstractHistogram | |
| cAbstractHistogram (const cAbstractHistogram &other) | |
| cAbstractHistogram (const char *name=nullptr, bool weighted=false) | |
| virtual | ~cAbstractHistogram () |
| cAbstractHistogram & | operator= (const cAbstractHistogram &res) |
| virtual double | getBinEdge (int k) const =0 |
| virtual double | getBinValue (int k) const =0 |
| virtual double | getBinPDF (int k) const |
| virtual Bin | getBinInfo (int k) const |
| virtual double | getPDF (double x) const |
| virtual double | getCDF (double x) const |
| virtual double | draw () const override |
| virtual _OPPDEPRECATED bool | isTransformed () const final |
| virtual _OPPDEPRECATED void | transform () final |
| virtual _OPPDEPRECATED int | getNumCells () const final |
| virtual _OPPDEPRECATED double | getBasepoint (int k) const final |
| virtual _OPPDEPRECATED double | getCellValue (int k) const final |
| virtual _OPPDEPRECATED double | getCellPDF (int k) const final |
| virtual _OPPDEPRECATED int64_t | getUnderflowCell () const final |
| virtual _OPPDEPRECATED int64_t | getOverflowCell () const final |
| virtual _OPPDEPRECATED Bin | getCellInfo (int k) const final |
| Public Member Functions inherited from cStdDev | |
| cStdDev (const cStdDev &r) | |
| cStdDev (const char *name=nullptr, bool weighted=false) | |
| virtual | ~cStdDev () |
| cStdDev & | operator= (const cStdDev &res) |
| virtual cStdDev * | dup () const override |
| virtual std::string | str () const override |
| virtual bool | isWeighted () const override |
| virtual int64_t | getCount () const override |
| virtual double | getSum () const override |
| virtual double | getSqrSum () const override |
| virtual double | getMin () const override |
| virtual double | getMax () const override |
| virtual double | getMean () const override |
| virtual double | getStddev () const override |
| virtual double | getVariance () const override |
| virtual double | getSumWeights () const override |
| virtual double | getWeightedSum () const override |
| virtual double | getSqrSumWeights () const override |
| virtual double | getWeightedSqrSum () const override |
| Public Member Functions inherited from cStatistic | |
| cStatistic (const cStatistic &r) | |
| cStatistic (const char *name=nullptr) | |
| virtual | ~cStatistic () |
| cStatistic & | operator= (const cStatistic &res) |
| virtual void | collect (SimTime value) |
| virtual void | collectWeighted (SimTime value, double weight) |
| virtual void | collectWeighted (double value, SimTime weight) |
| virtual void | collectWeighted (SimTime value, SimTime weight) |
| virtual void | record () |
| virtual void | recordWithUnit (const char *unit) |
| virtual void | recordAs (const char *name, const char *unit=nullptr) |
| virtual _OPPDEPRECATED double | getWeights () const final |
| virtual _OPPDEPRECATED void | collect2 (double value, double weight) final |
| virtual _OPPDEPRECATED void | collect2 (SimTime value, double weight) final |
| virtual _OPPDEPRECATED void | collect2 (double value, SimTime weight) final |
| virtual _OPPDEPRECATED void | collect2 (SimTime value, SimTime weight) final |
| virtual _OPPDEPRECATED double | random () const final |
| virtual _OPPDEPRECATED void | clearResult () final |
| Public Member Functions inherited from cRandom | |
| cRandom (cRNG *rng) | |
| cRandom (const char *name=nullptr, cRNG *rng=nullptr) | |
| virtual | ~cRandom () |
| virtual void | setRNG (cRNG *rng) |
| cRNG * | getRNG () const |
| Public Member Functions inherited from cOwnedObject | |
| cOwnedObject () | |
| cOwnedObject (const char *name, bool namepooling=true) | |
| cOwnedObject (const cOwnedObject &obj) | |
| virtual | ~cOwnedObject () |
| cOwnedObject & | operator= (const cOwnedObject &o) |
| virtual cObject * | getOwner () const override |
| virtual bool | isOwnedObject () const override |
| virtual bool | isSoftOwner () const |
| Public Member Functions inherited from cNamedObject | |
| cNamedObject () | |
| cNamedObject (const char *name, bool namepooling=true) | |
| cNamedObject (const cNamedObject &obj) | |
| virtual | ~cNamedObject () |
| cNamedObject & | operator= (const cNamedObject &o) |
| virtual void | setName (const char *s) |
| virtual const char * | getName () const override |
| virtual void | setNamePooling (bool b) |
| virtual bool | getNamePooling () |
| Public Member Functions inherited from cObject | |
| cObject () | |
| cObject (const cObject &other) | |
| virtual | ~cObject () |
| virtual const char * | getClassName () const |
| bool | isName (const char *s) const |
| virtual const char * | getFullName () const |
| virtual std::string | getFullPath () const |
| const cObject * | getThisPtr () const |
| virtual _OPPDEPRECATED std::string | info () const |
| virtual _OPPDEPRECATED std::string | detailedInfo () const |
| virtual void | forEachChild (cVisitor *v) |
| cObject * | findObject (const char *name, bool deep=true) |
| void | copyNotSupported () const |
Additional Inherited Members | |
| Public Types inherited from cPrecollectionBasedDensityEst | |
| Static Public Member Functions inherited from cOwnedObject | |
| static long | getTotalObjectCount () |
| static long | getLiveObjectCount () |
| static void | resetObjectCounters () |
| static cDefaultList * | getDefaultOwner () |
| Protected Member Functions inherited from cPrecollectionBasedDensityEst | |
| virtual void | setupRange () |
| virtual void | collectIntoHistogram (double value)=0 |
| virtual void | collectWeightedIntoHistogram (double value, double weight)=0 |
| Protected Member Functions inherited from cObject | |
| virtual void | take (cOwnedObject *obj) |
| virtual void | drop (cOwnedObject *obj) |
| void | dropAndDelete (cOwnedObject *obj) |
Constructor & Destructor Documentation
|
inline |
Copy constructor.
| cLegacyHistogramBase | ( | const char * | name, |
| int | numcells, | ||
| bool | weighted = false |
||
| ) |
Constructor.
|
virtual |
Destructor.
Member Function Documentation
| cLegacyHistogramBase& operator= | ( | const cLegacyHistogramBase & | res | ) |
Assignment operator. The name member is not copied; see cNamedObject's operator=() for more details.
|
overridevirtual |
Serializes the object into an MPI send buffer. Used by the simulation kernel for parallel execution. See cObject for more details.
Reimplemented from cPrecollectionBasedDensityEst.
Reimplemented in cLegacyHistogram, and cVarHistogram.
|
overridevirtual |
Deserializes the object from an MPI receive buffer Used by the simulation kernel for parallel execution. See cObject for more details.
Reimplemented from cPrecollectionBasedDensityEst.
Reimplemented in cLegacyHistogram, and cVarHistogram.
|
overridevirtual |
Clears the results collected so far.
Reimplemented from cPrecollectionBasedDensityEst.
Reimplemented in cVarHistogram.
|
overridevirtual |
Transforms the table of pre-collected values into an internal histogram structure.
Implements cAbstractHistogram.
Reimplemented in cVarHistogram.
|
overridevirtual |
Returns the number of histogram bins used.
Implements cAbstractHistogram.
|
overridevirtual |
Writes the contents of the object into a text file.
Reimplemented from cPrecollectionBasedDensityEst.
Reimplemented in cLegacyHistogram, and cVarHistogram.
|
overridevirtual |
Reads the object data from a file, in the format written out by saveToFile().
Reimplemented from cPrecollectionBasedDensityEst.
Reimplemented in cLegacyHistogram, and cVarHistogram.
|
virtual |
Sets the number of bins. Cannot be called when the bins have been set up already.
The documentation for this class was generated from the following file:
