Chapter 11. NED Documentation Generator

This chapter describes how to use the NED Documentation Generator from the IDE.

Please refer to the OMNeT⁠+⁠+ Manual for a complete description of the documentation generation features and the available syntax in NED and MSG file comments.

The generator has several project-specific settings that can be set from the project context menu through the Properties menu item. The output folders for both NED documentation and C⁠+⁠+ documentation can be set separately. The doxygen-specific configuration is read from the text file doxy.cfg by default. The IDE provides a sensible default configuration for doxygen in case you do not want to go through all the available options. The generated HTML uses CSS to make its style customizable. You can provide your own style sheet if the default does not meet your needs. In general, all project-specific settings have good defaults that work well with the documentation generator.

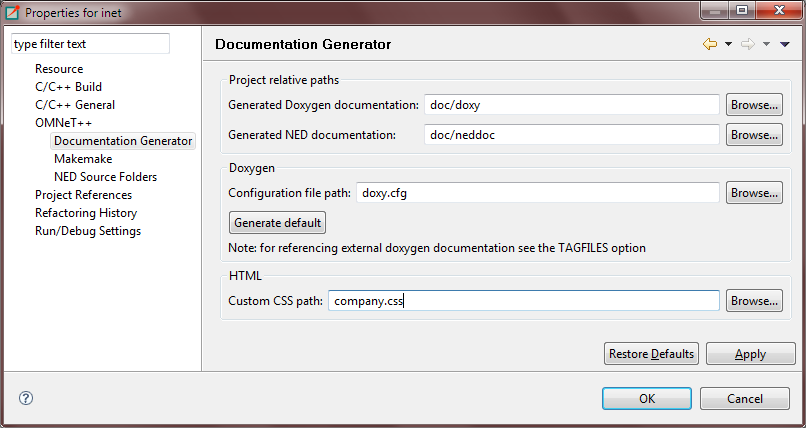

Figure 11.1.  Configuring project-specific settings

To generate NED documentation, you need to select one or more projects. Then, either go to the main Project menu or to the project context menu and select the Generate NED Documentation menu item. This will bring up the configuration dialog where you can set various settings for the current generation before starting it.

Figure 11.2.  Opening the NED documentation generator

The IDE can generate documentation for multiple projects at the same time. Other options control the content of the documentation including what kind of diagrams will be generated and whether NED sources should be included. You can enable doxygen to generate C⁠+⁠+ documentation that will be cross-linked from the NED documentation. The tool can generate the output into each project as configured in the project-specific settings, or into a separate directory. The latter is useful for exporting standalone documentation for several complex projects at once.

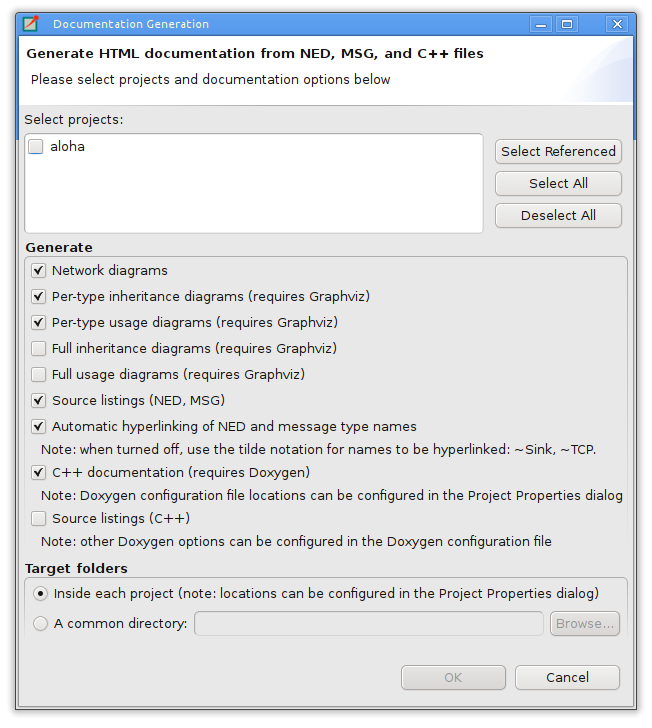

Figure 11.3.  Configuring the NED documentation generator

The NED generation process might take a while for big projects, so please be patient. For example, the INET project's complete documentation including the C⁠+⁠+ doxygen documentation takes a few minutes to build. You can follow the process in the IDE's progress monitor.

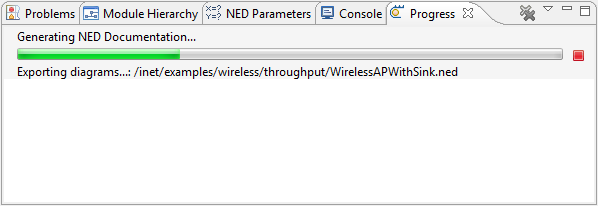

Figure 11.4.  Generating NED documentation in progress

The result is a number of cross-linked HTML pages that can be opened by double-clicking the generated index.html. On the left side, you will see a navigation tree, while on the right side there will be an overview of the project. If you have not yet added a @titlepage directive into your NED comments, then the overview page will display a default content.

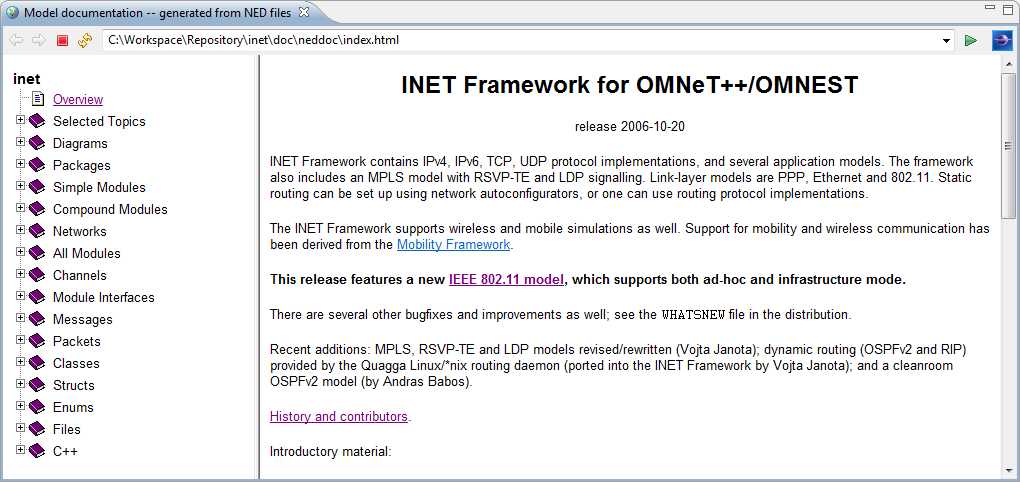

Figure 11.5.  The resulting NED documentation

The documentation contains various inheritance and usage diagrams that make it easier to understand complex models. The diagrams are also cross-linked, so that when you click on a box, the corresponding model element's documentation will be opened. The NED model elements are also exported graphically from the NED Editor. These static images provide cross-referencing navigation for submodules.

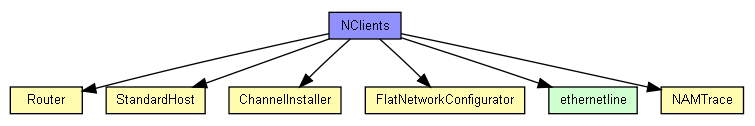

Figure 11.6.  NED usage diagram

There are also a number of tables that summarize various aspects of modules, networks, messages, packets, etc. The most interesting is the list of assignable parameters. It shows all parameters from all submodules down the hierarchy that do not have fixed values. These can be set either through inheritance, encapsulation or from the INI file as experiments.

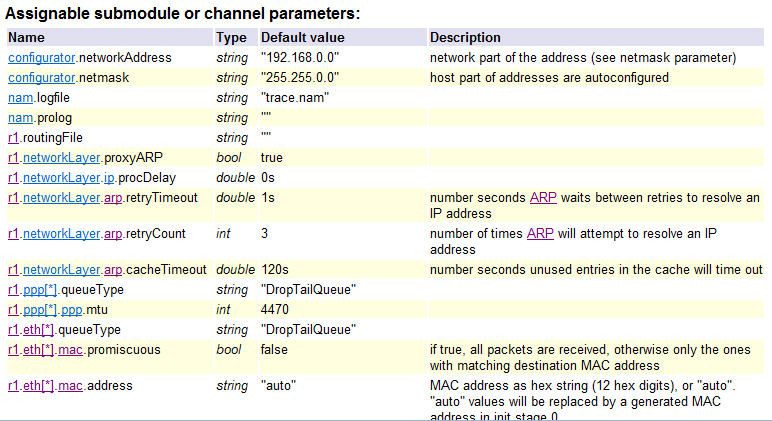

Figure 11.7.  NED assignable parameters

There are other tables that list parameters, properties, gates, using modules or networks, and various other data along with the corresponding descriptions. In general, all text might contain cross-links to other modules, messages, classes, etc. to make navigation easier.
